Internal thread magnetic Tube

Internal thread magnetic Tube
Availability:
  • BW-TUBE

  • Bmag

  • 85051190000

Product Description

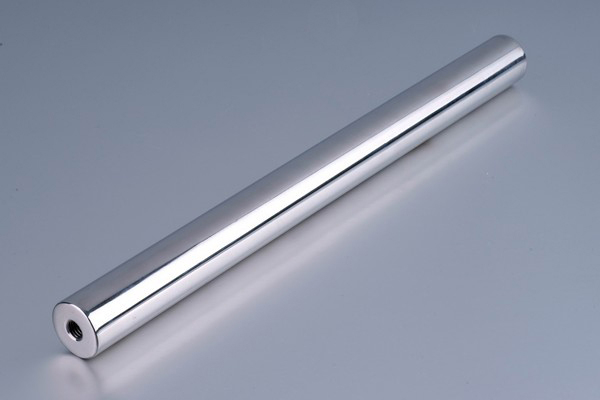

 Internal thread magnetic Tube

Product Name 12000 Gauss Stainless Steel Internal thread magnetic Tube
Working Tempereture 80-350°C
Surface Gauss up to 14000Gs
Outer Diameter D16-D100mm
Length Customized
Stainless Steel Tube SS304 /316/316L
Application Water treatment,Chemical industry,Food, drink and tobacco industry,Recycling industry,Plastics production,Ceramic industry,Pharmaceutical industry,Other liquid(hydro- material) separation applicationHigh power,designed with NdFeB magnets
Package Standard Export Package or customized size


How to Design the Size of Magnetic Tube?

1. Diameter: Diameters are in a series. The relationship between the diameter and max. gauss value is as below:

Diameter 6000Gs 7000Gs 8000Gs 10000Gs 11000Gs 12000Gs 1400Gs
Ø16





Ø19




Ø22



Ø25
Ø28
Ø32
Ø38
Ø50
Ø63
Ø100

* recommended diameter is Ø25mm(1″)


2. Length: Custom and made to any length


How to Design the Installation?

Installation

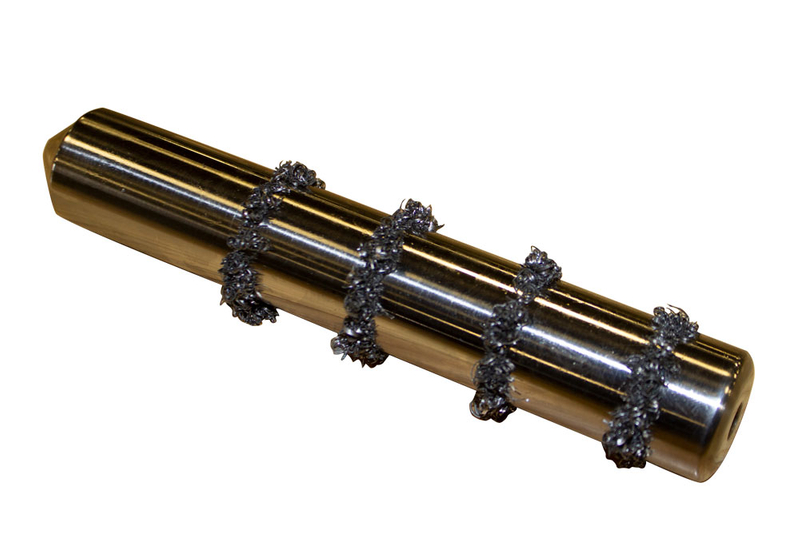

How magnetic tubes works

A magnetic tube made of a stainless steel tube, polar plates,end-plugs, and permanent magnets. The higher the surface gauss of the tube, the higher the price.

how-magnetic-tube-works


Application

magnetic-tubes-casestudy


Advantage

2022-04-24_14-14-27  2022-04-24_14-15-56

Mirror Polished   RA=0.6MM                                     Seamless Steel Pipe

                                                                                     zero leakage and waterproof


2022-04-24_14-16-42  29452166B9041DEF231AC86C27DC9679

Warranty: Demagnetization <8% under               Super Hardness,indeformable

normal working temperature for 1 year

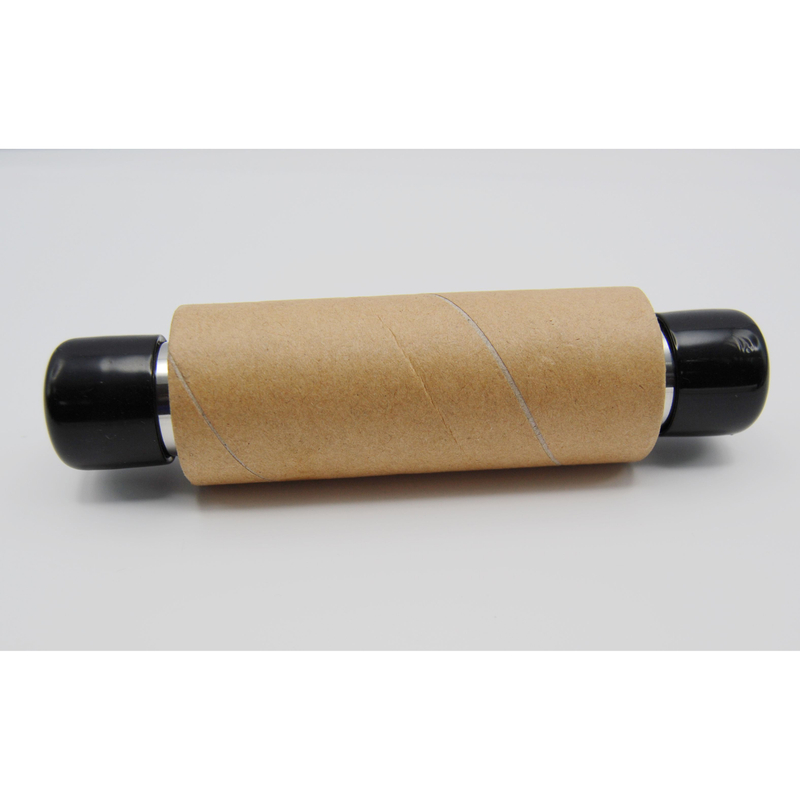

Packing

DSC_0296_副本550450CA1158757D2E09DD2F60C11F61
