Product Description

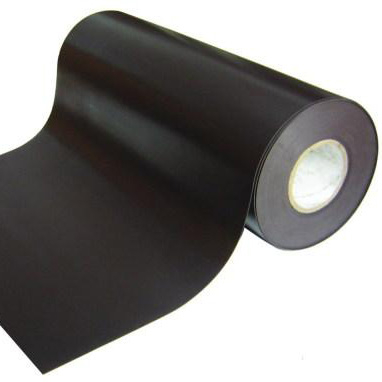

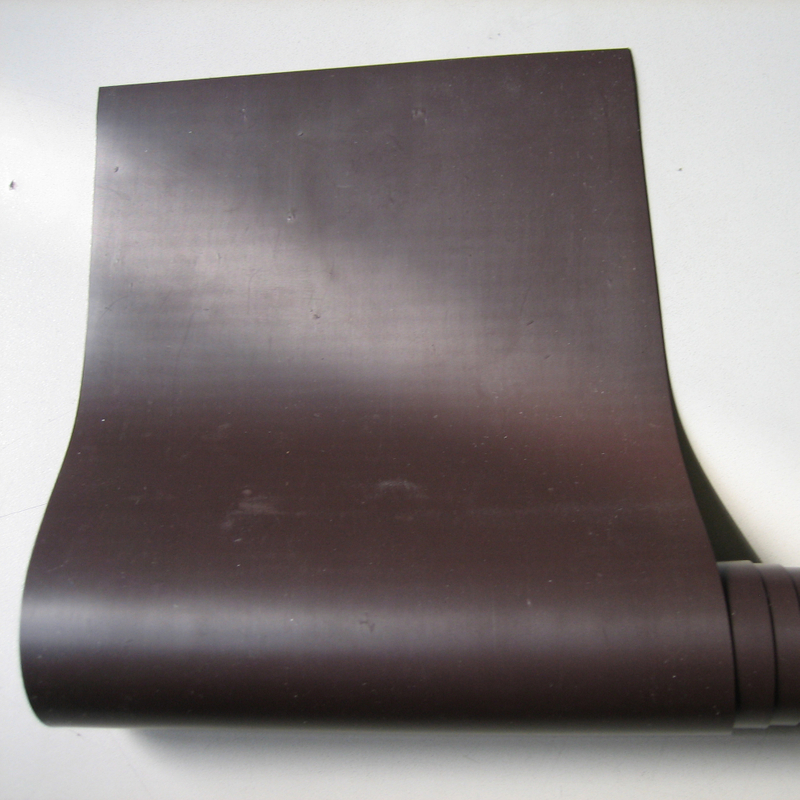

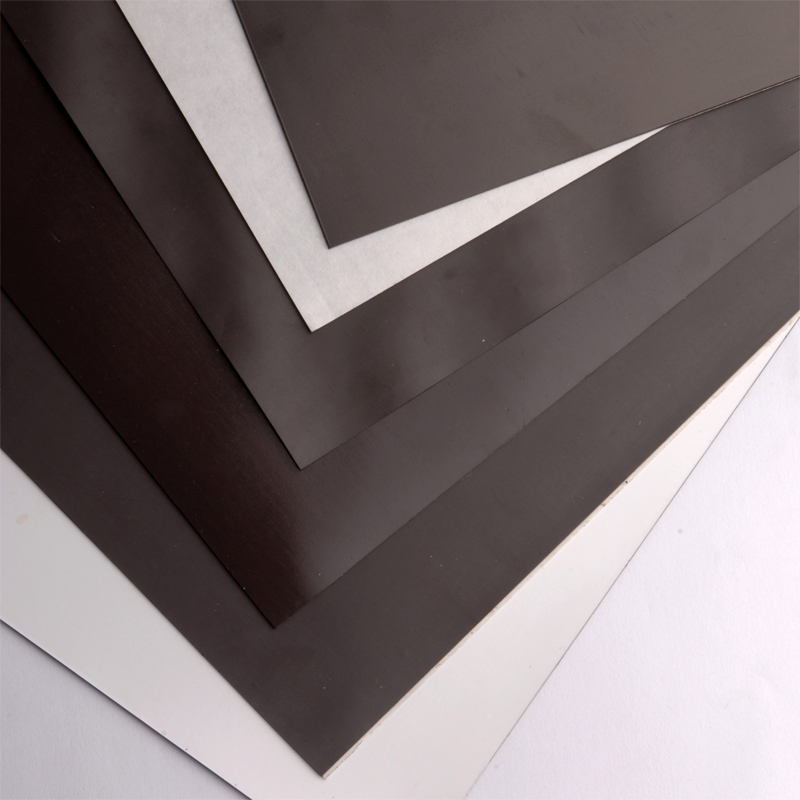

Flexible Rubber Magnet are made of ferrite magnet powder or rare earth powder, compound with rubber, resin and other materials. Formed by extruding, injecting or calendering, the rubber magnets have different shapes such as strip, sheet or roll. Since the rubber magnet is plasticity, it can be made with any shapes by pressing or cutting. Besides, it is also very flexible, so it can be coiled to 1/4" radius without breaking. There are "Isotropic" and "Anisotropic" in the flexible rubber magnet. The Isotropic rubber magnet normally is to be magnetized with multipoles magnetization on one side only and the Anisotorpic one has magnetics on both side. Based on customer's demand, the rubber magnets can be laminated by colorful PVC, adhesive tape or colorful printing. The attractive face is treated with UV coating which can protect the products surface. We also can supply. Magnetic Paper " for A4 size, which made from rubber magnets and laser paper. The thickness just has 0.3mm which can be printed by any printing machine!
Industrial Flexible magnet rubber magnet
| Code | Br | Hcb | Hcj | (BH)max | Forming way | Size | ||
| T | KA/m | KA/m | KJ/m3 | Max Length(m) | Max Width(mm) | Height(mm) | ||
| BWZY-1 | 0.13~0.18 | 80~120 | 100~160 | 4~6.4 | Calendering | 100 | 400 | 0.4~1.1 |
| BWZY-2 | 0.18~0.22 | 100~140 | 120~190 | 6.4~8.0 | Calendering | 2 | 930 | 0.6~3 |
| BWZY-3 | 0.21~0.239 | 140~165 | 150~210 | 8.0~10.4 | Calendering | 100 | 400 | 0.4~1.5 |
| BWZY-4 | 0.24~0.265 | 15z`6~181 | 200~270 | 10.4~12.5 | Calendering | 2 | 400 | 0.6~6 |
